GAI-TRONICS AUTELDAC 5 ATEX Approved Hazardous Area Telephone

1.593,71 € – 1.838,90 € INCL. VAT

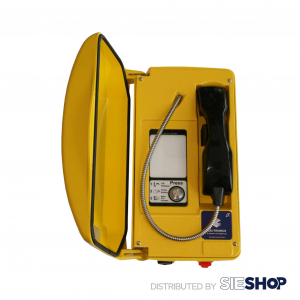

The GAI-TRONICS Auteldac 5 (A5) telephone is an ATEX and IECEx approved, weather-resistant unit, designed to withstand arduous industrial atmospheres and environmental extremes.

  • Clear selection
Add to cart
Share :
  • Description
Product Description

The GAI-TRONICS Auteldac 5 (A5) telephone is an ATEX and IECEx approved, weather-resistant unit, designed to withstand arduous industrial atmospheres and environmental extremes.

Certified for safe operation in hazardous areas, the Auteldac 5 carbon-loaded glass-filled polyester enclosure eliminates the risk of rust and corrosion.

Features such as “electronic on-hook sensing and electronic tone ringer” ensure enclosure protection of up to IP66. Should the handset be left off-hook, the A5 will automatically revert to an on-hook state after a period of 7 minutes (optional).

Auteldac 5 telephones come complete with an integral ringer with volume control and a secondary beacon/external sounder actuator as standard.

An inductive coupler is fitted to aid the hard of hearing. For hands-free telephone use, the Auteldac 5 headset* version can be provided.

Application Example

Industrial environments

Features
  • IECEx certified
  • 2 G and 2 GD ATEX certified telephones for gas and dust
  • Zone 1 and 2, Zone 21 and 22 compliant models
  • (EMC Directive 2014/30/EU, low voltage directive 2014/35/EU)
  • Fully compliant with TBR21/TBR38
  • Full keypad with 3 programmable memory buttons, or CB (0 button) variant
  • Optional removable headset
  • 90dB sounder (adjustable)
  • Beacon/external sounder actuator
  • Robust and weather resistant up to IP66
  • Extended cord length available
Product Specifications
Details
CE compliant Yes
Color Black, stainless steel
Operating temperature -20° C up to +60 °C
Relative humidity Up to 95% (non-condensing)
Output level ringer 90 dBA @ 2 ft
Signal type Analogue
Type 18 Button
Weather resistant Yes
Electrical ratings
Signal Phone line
Certifications and Compliance
CE compliant Yes
General Specifications
Enclosure Carbon loaded glass-filled polyester (color: black)
Surface resistance <109Ω
Handset Conductively coated polycarbonate handset with coiled cord or stainless steel spiral cord. Noise canceling options. Extended cord lengths available
Keypad Weather-sealed tactile digital keypad
Hookswitch Electronic with no mechanical moving parts
Weather ingress protection Up to IP66
Power supply Drawn from telephone line
Integral ring detector Contact closure following the ringing cadence, rated at 230Vac, 3A r.m.s.
Isolated hook switch sensor Additional contact rated at 230 V ac, 150mA r.m.s.
Parallel terminal block Duplicated line terminals allows connection to a parallel device without an additional junction box
Time out Enforces a fixed call maximum time limit to 7 minutes from lifting of the handset User selectable ON or OFF
Dialing system LD or DTMF (switchable)
Recall button Internally switchable from Earth Loop Recall (600ms pulse) and Timed Break Recall 100ms, 250ms or 600ms
Weight approx. 3.2 kg
Headset The headset cord is approximately 820mm long and can extend to approximately 2m. The headset extension lead will allow the operator to use the headset over 6 meters away from the telephone
ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY. ACTUAL PRODUCTS MAY VARY DUE TO PRODUCT ENHANCEMENT.
SKU: GAI-TE03PBX-2108-022 Categories: Field Equipment, PABX, Telecom
