PIC1-FHF11264301
PIC6-FHF1126430202
PIC3-FHF1126430102
PIC5-FHF11264302
PIC2-FHF11264301
PIC8-Accessories

FHF ResistTel Weatherproof Telephone (Analog)

1.068,62 € – 1.138,83 € INCL. VAT

Estimated delivery time 4-8 working weeks

The ResistTel Weatherproof Telephone (Robust) is specially designed for rough ambient conditions but applicable both indoors and outdoors (IP66)(-25°C to +60°C temperature range). It comes with a steel armored handset cord, a stainless steel V4A keypad (so are all the other metal parts), an Integrated display and telephone book (some versions), a various colored GRP (glass fibre reinforced polyester) housing. The ResistTel telephone enables a hands free operation (headset is available as an accessory) and features as a telephone directory (display version) and hotline phone (ZB version).

  • Clear selection
Add to cart
Share :
  • Description
Product Description

ResistTel is a product of FHF that means: making telephone calls in rugged ambient conditions with the best functional security in industrial areas. Our telephone is resistant to seawater, acid, lye, and lubricants. The compression-molded housing made of GRP (Glass-fibre-reinforced polyester) is impact resistant. The stainless steel keypad (V4A) withstands high loads and at the same time protects the inner parts of the telephone. The steel armored handset cord is manufactured to withstand high tensile forces. With its interesting additional features and options, our ResistTel opens many possibilities with regard to your special applications. The ResistTel user interface is simple, user friendly and menu-driven, and is designed to be used wearing industrial gloves.

Application Example

The ResistTel user interface is simple, user friendly and menu-driven, and is designed to be used wearing industrial gloves. It is the ideal telephone for many different work areas such as Refinery plants.

Features
  • Completely programmable
  • Fully encapsulated electronics
  • Handsfree / Speakerphone function
  • 316 Stainless Steel keypad, faceplate, and trim
  • Hermetically sealed
  • Adjustable handset holding clips
  • Captive cover screws
  • Ventilation / Pressure balancing plug
Product Specifications
Connections
Line voltage 24 VDC to 66 VDC
Line current 15 mADC to 100 mADC
Ringing alternating current 24 VAC to 90 VAC (at 21…54 Hz ringing frequency)
30 VAC to 90 VAC (at 16.6…54 Hz ringing frequency)
Ringing impedance Greater than 6.0 KΩ at 25 Hz and 24…90 VAC
Greater than 4.0 KΩ at 50 Hz and 24…90 VAC
Recall function Flash function adjustable from 40ms to 399ms
Dialing frequency PD-DTMF operation to be set in the menu
PD operation where the pulse/pause ratio can be set to 1.5:1 or 2:1 in the menu
W-conductor Connection for external secondary sounder
Screw terminals Up to 4 mm2 rigid. Up to 2.5 mm2 flexible
Housing
Material Glass-fibre-reinforced polyester
Height x Width x Depth Approx. 266 x 227 x 135 mm
Weight Approx. 5.5 kg
Display 2 line alphanumeric display with pictograms (visible area approx. 78 mm x 26 mm)
Keypad Metal keypad with ice protection. 21 keys with ABC lettering for name entries
Receiver
Mate Stabilizer bracket Integrated, adjustable stabilizer bracket
Handset cord Stainless steel (V4A) armoured handset cord
Receiver inset Dynamic receiver inset with leakage field spool for inductive coupling of hearing aids
Mouthpiece Electret-foil microphone
Noise suppression Greater than 3 dB due to integrated mouthpiece horn mouth
Further Characteristics
Optical call signalling Display shows ( ( ( ) ) )
Ringing sound pressure level Approx. 95 dB(A) at 1m distance
Ringing melodies 10 melodies selectable.
Listen by Loudspeaker Maximum sound pressure level approx. 70 dB(A) at 1m distance
Handsfree Maximum sound pressure level approx. 70 dB(A) at 1m distance
Amplified listening in the receiver Receiver volume can be boosted in 7 steps from 0 –12 dB(A)
Menus In several languages
Telephone book Max. 50 entries (names and numbers)
Optional Accessories
  • Additional headset (F11264304)
  • Additional earpiece (F11264303)
  • Loudspeaker set (F11264305)
  • TWIN Sounder/Beacon (F118832(–))
  • Protection hood hot galvanised yellow (F11890101)
  • Protection hood stainless steel (F11890111)
  • Secondary sounder (F21110105)
ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY. ACTUAL PRODUCTS MAY VARY DUE TO PRODUCT ENHANCEMENT.
SKU: FHF-TE03PBX-2011-006 Categories: Field Equipment, PABX, Telecom

Related products

  • 226
    Select optionsQuick View

    GAI-TRONICS Hazardous Area Division 2 Tough Phone

    2.467,58 € INCL. VAT
  • metal-hood
    Select optionsQuick View

    FHF Telephone Protection Hood Type 404 Metal (Galvanized Steel)

    1.379,21 € – 2.485,91 € INCL. VAT
  • 394AL-00x
    Read moreQuick View

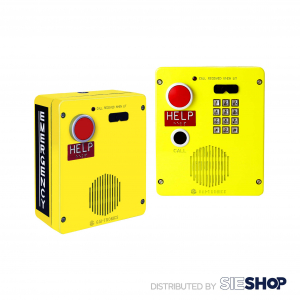

    GAI-TRONICS RED ALERT® Emergency Telephone (Model 394AL-00x)
